Benefits
Design:
  • Telescopic hood
  • Installation: Cupboard 60 cm
  • Suitable for ducted or recirculating operation
Core Features:
  • Capacitor motor
  • 2 x 1,5W LED
  • Colour Temperature: 3500 K
  • Light Intensity: 131 lux

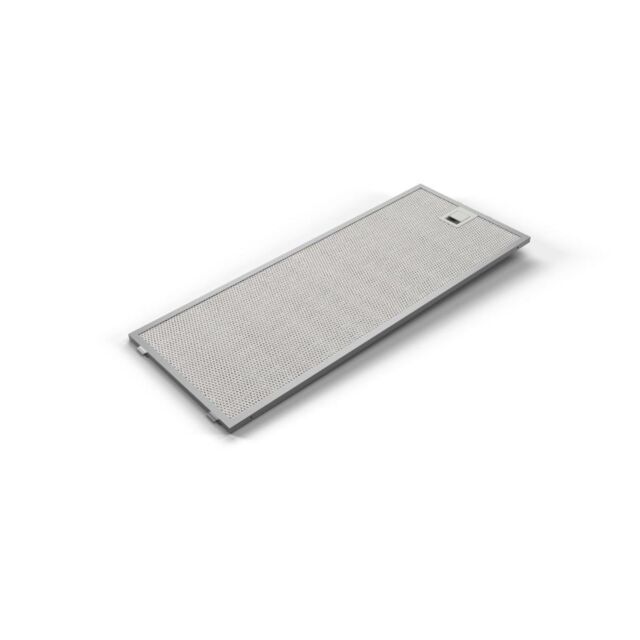

  • 2 metal grease filter(s).
Comfort Features:
  • Rocker switch control for extractor speeds and light
  • 2 power levels
Cleaning Comfort:
  • Removable metal grease filters dishwasher-safe
Performance Exhaust:
  • According to EN 61591 and EN/ IEC 60704-2-13   your appliance can achieve the following values in exhaust mode:
  • Speed 1: extraction rate  276 m3/h; noise level 61 dB(A) re1pW
  • Speed 2: extraction rate  351 m3/h ; noise level 65 dB (A) re1pW

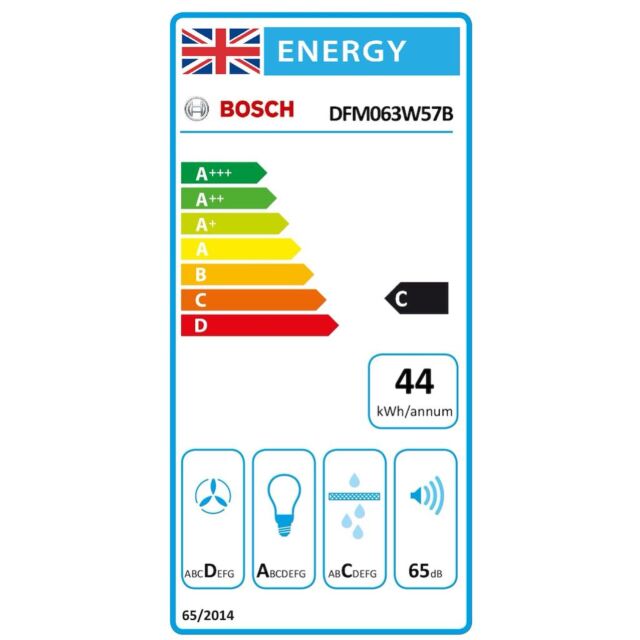

  • Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
  • Average Energy Consumption: 43.5 kWh/year*
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: C*
Performance Recirculation:
  • For recirculated extraction recirculating kit (accessory) needed
  • According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in  recirculation mode with  standard recirculation kit  (available as optional accessory): Speed 1: extraction rate 190 m3/h; noise level 66 dB(A) re1pW
  • Speed 2: extraction rate 220 m3/h; noise level 69 dB (A) re1pW)
Technical Information and Sustainability:
  • Consumption data:
  • Power rating: 93 W
  • Voltage: Nominal voltage: 220 - 240 V
  • Sustainability:
  • Made in Germany
Planning and Installation Information:
  • Dimensions (HxWxD): 203 x 598 x 290 mm
  • Built-in dimensions (HxWxD): 162 x 526 x 290 mm
  • Electrical cable length 1.75 m
  • Diameter pipe  Ø 150 mm
  • Handle strip specification: stainless steel with logo
More Information
Manufacturer Bosch
Type of Control / Appliances Mechanical
Type of Control Settings Rocker switch
GTIN 4242005538072
Colour Metallic silver
Model Number DFM063W57B
Appliance Current (A) 10
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50
Plug Type GB plug
Cord Length 175
Min Niche Width 526
Energy Rating C
Niche Depth 290
Noise Level 65
Number of Lights 2
Type of Light LED
Max Output Air Extraction 351
Sound Power Min Speed 61
Sound Power Max Speed 65
Min Air Flow 276
Max Air Flow 351
Grease Filtering Efficiency Class C
Grease Filtering Efficiency 82.8
Max Output Recirculating Air 220
Grease Filter Material Washable aluminium
Number of Motors 1
Diameter of Air Outlet 150
Lighting Efficiency Class A
Lighting Efficiency 45.2
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 15.0
Operating Mode Convertible
Typology Pull-out
Fluid Dynamic Efficiency Class D
Installation Type Built-In
Width 526

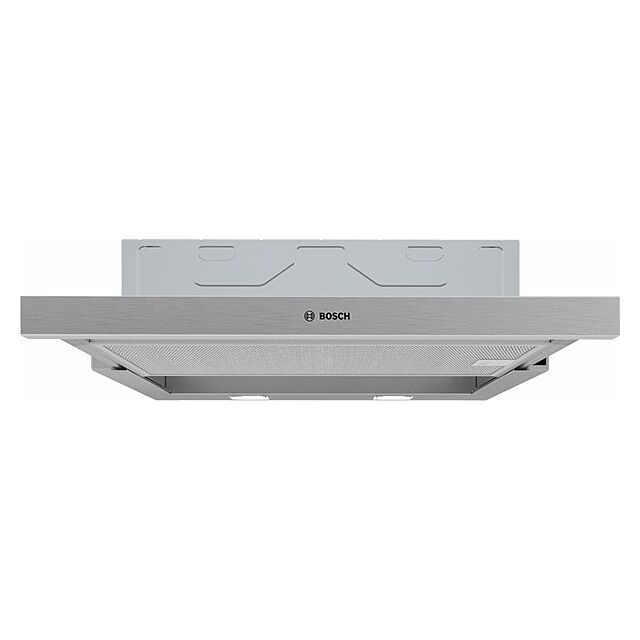

Bosch DFM063W57B, Telescopic cooker hood
