Design:
- Canopy hood
- For installation under an overhead canopy kitchen unit
- Suitable for ducted and re-circulating operation
- Capacitor motor
- 2 x LED spot 2.15W (low volt)
- Colour Temperature: 3500 K
- Light Intensity: 410 lux
- 2 metal grease filter(s).
- Slider switch control
- 3 x power levels plus intensive setting
- Steel filter cover dishwasher-safe
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 229 m3/h; noise level 46 dB (A) re1pW Speed 2: extraction rate 371 m3/h; noise level 57 dB (A) re1pW Speed 3: extraction rate 468 m3/h; noise level 63 dB (A) re1pW Intensive 1: extraction rate 614 m3/h; noise level 68 dB (A) re1pW

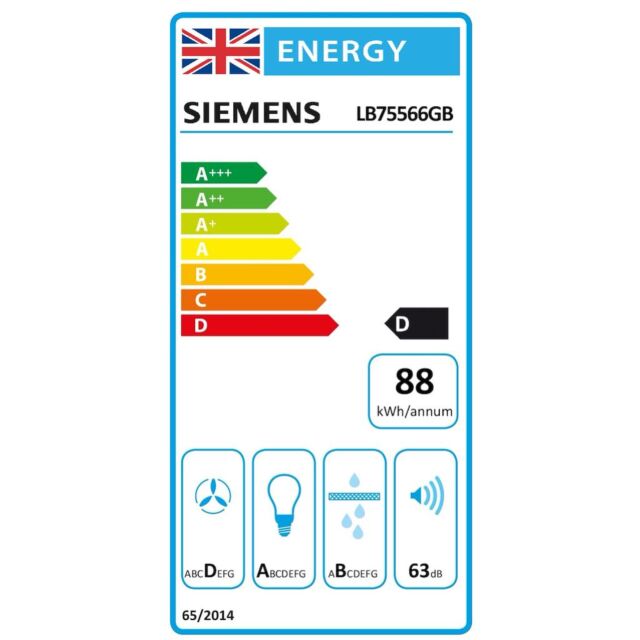

- Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 88.1 kWh/year*
- Blower Efficiency Class: D*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- For recirculated extraction charcoal filter (accessory) needed
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 140 m3/h; noise level 56 dB (A) re1pW Speed 2: extraction rate 231 m3/h; noise level 67 dB (A) re1pW) Speed 3: extraction rate 281 m3/h ; noise level 70 dB (A) re1pW) Intensive Speed 1: extraction rate324 m3/h; noise level 73 dB (A) re1pW)
- Consumption data:
- Power rating: 206 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Made in Germany
- Dimensions (HxWxD): 215 x 730 x 380 mm
- Built-in dimensions (HxWxD): 215 x 700 x 350 mm
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm
| Manufacturer | Siemens |
|---|---|
| Type of Control / Appliances | Mechanical |
| Type of Control Settings | Mechanical slider |
| GTIN | 4242003979273 |
| Colour | Metallic silver |
| Model Number | LB75566GB |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50 |
| Plug Type | GB plug |
| Cord Length | 130 |
| Min Niche Width | 700 |
| Energy Rating | D |
| Niche Depth | 350 |
| Noise Level | 63 |
| Number of Lights | 2 |
| Boost Position Air Extraction | 614 |
| Max Output Air Extraction | 468 |
| Noise Level Boost Position | 68 |
| Sound Power Min Speed | 46 |
| Sound Power Max Speed | 63 |
| Air Flow Boost | 614 |
| Min Air Flow | 229 |
| Max Air Flow | 468 |
| Grease Filtering Efficiency Class | B |
| Grease Filtering Efficiency | 87.3 |
| Max Output Recirculating Air | 281 |
| Boost Position Output Recirculating | 324.0 |
| Grease Filter Material | Washable aluminium |
| Number of Motors | 2 |
| Diameter of Air Outlet | 150 |
| Lighting Efficiency Class | A |
| Lighting Efficiency | 62.1 |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 14.4 |
| Operating Mode | Convertible |
| Typology | Built-in/Built-under |
| Fluid Dynamic Efficiency Class | D |
| Installation Type | Built-In |
| Width | 700 |

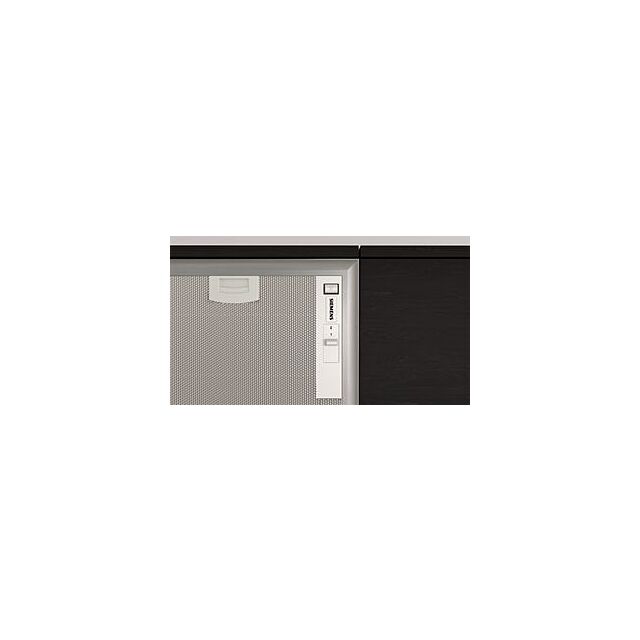

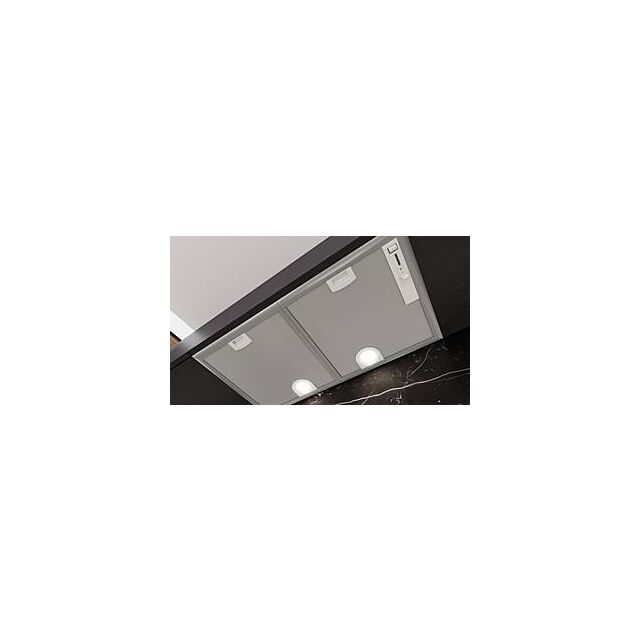

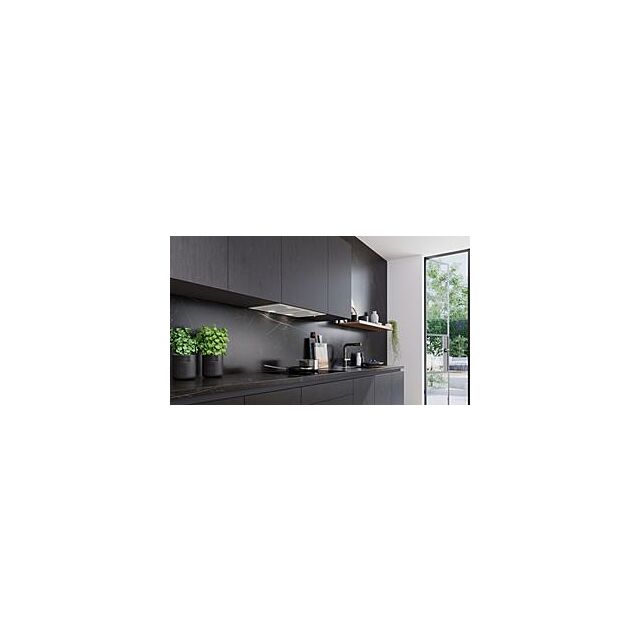

Siemens LB75566GB, Canopy cooker hood
Retail price
£389.99
Available To Pre-Order Online
or Please contact sales on 0330 900 1966 for an available date
or Please contact sales on 0330 900 1966 for an available date
- Warranty 2 Years
Colour:
Metallic silver
Energy Rating:
D
Installation Type:
Built-In
Width:
700
Manufacturer Guarantee:
2 years
EAN:
4242003979273
